Printable Weld Symbol Table – The diagrams sometimes also feature corresponding symbols. The weld symbol distinguishes between the two sides by using the arrow and the spaces above and below the reference line. A note on the print or in the tail can specify material and dimensions. The base platform this symbol is a simple platform for displaying the characteristics and surrounding details for your welds.

Basic Weld Symbol Chart

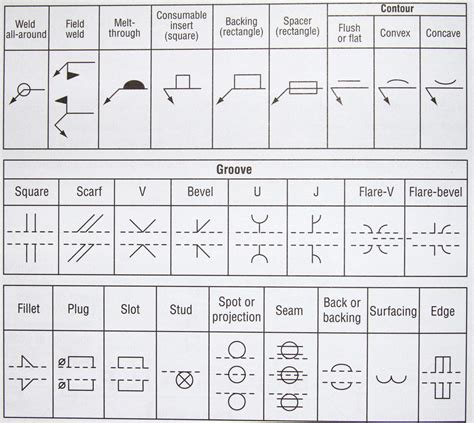

This table contains most of what you arrow¬side need to properly specify weld symbols for structural steel. You see a basic weld symbol on each welding position, usually placed close to the reference line. Reading a welding blueprint is actually quite simple if you can decipher the angles and dimensions next to welding symbols.

An Arrow A Tail Basic Weld Symbol Dimensions And Other Data Supplementary Symbols Finish Symbol Specification, Welding Process, Or Other.

The only complete and official presentation of the standard welding symbols is in aws a2.4, standard symbols for welding, brazing, and nondestructive examination. The most basic element of a welding symbol is the “weld symbol” itself, which tells what type of weld is required: The side of the joint to which the.

Fillet Weld, Groove Weld, Plug Weld, Etc.

It indicates the need for finishing processes like. We offer a variety of helpful welding charts and guides that you can reference online, or download as a pdf to print, distribute, or post for your welding team. However, the table can look like a bowl of alphabet soup.

It Is The Distance Between Two Consecutive Welds, Measured From The Center Of Both Welds.

The symbol is a rectangle the breaks the reference line. A weld symbol defines the type of geometry for the welding. The table presents some of the most commonly used welding symbols.

Each Type Of Weld Has A Specific Symbol That Is Used On Drawings To Indicate The Weld.

This eighth edition of aws a2.4 includes the following revised content: A weld symbol is a pictorial profile that is attached to the reference line part of the welding symbol. Standard symbols for welding, brazing, and nondestructive examination.

The Weld Symbol Specifies The Type Of Weld To Be Applied To A Part.

The welding symbol is made of several parts including the reference line, arrow, and weld. It usually involves preparing the edge pieces to form one of the groove weld shapes like v, bevel, u, j, flare v, flare bevel or no preparation at all with square edges to form a square groove. The width or diameter of a weld is.
